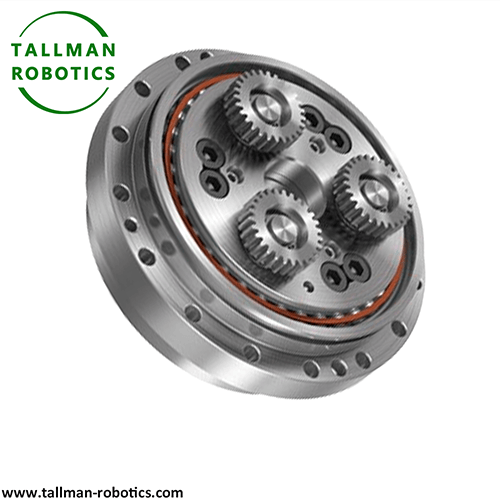

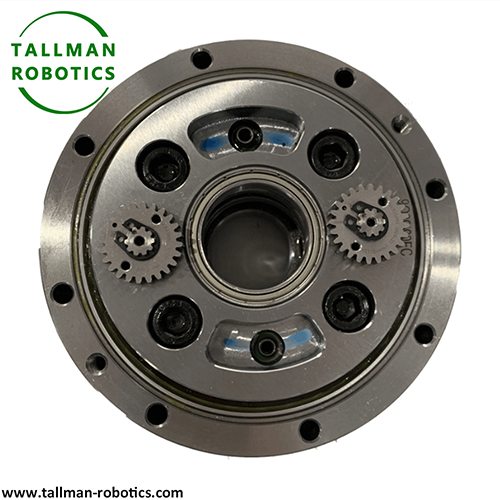

RV reducer, ñu tuddee ko itam Rotary Vector Reducer, ab aparey transmisioŋ bu am solo la ci wàllu otomatisation usine ak masin yu gëna jubal, mu nekk "core joint" ci jumtukaayi usine yu mag yu melni robot usine ak jumtukaayi masin yu gëna jub, densité couple, ñu xamee ko ci "perle" ci wàllu transmisioŋ mekanik.
Wàññikatu RV jumtukaay la buy wàññi ñaari etap, mu am transmisioŋ planetar ak transmisioŋ sikloidal. Li gëna am solo ci liggéeyam mooy soppi couple bu woyof biy dugg ci motër bi mu nekk couple bu woyof biy génn, ba noppi fexe ba transmisioŋ bi gëna jub ak dayo. Buñu ko méngale ak reducteurs yi fi yàgg a nekk, li ko wuutale mooy jëfandikoo ay bëñ yu bari ngir séddale sargal yi, ba noppi wàññi njuumte yu bari ci transmission bi (dafay faral di néew 1 arcminute njuumte ci dellu, ak yenn model yu yéeg - mën nañu yegg 15-30 arcseconds).
RV reducer jouer rôle buñu mënul wecci ci robot industriel moderne, Kontrolu mouvement ci juntuwaayu key yu melni ndigg li, loxo bi ci kaw, ak loxo bi ci suuf ci robot yi, daanaka yépp a ngi aju ci RV reducers, seen performance dafay wax ci njubte positionnement, stabilite mouvement, ak charge capacité ci robot bi. Buñu sukkandikoo ci lim yi, robot usine bu am 6 axe dafay laaj 4-6 RV reducers, loolu mooy lu ëpp 30% ci njëgu cër yi ci robot bi. Kon dañu jàpp ni lu am solo la ci ni réew mi di defaree ay aparey yu mujj.
Jariñu RV reducer mën na nuru lu kompact, waaye ci dëgg defa am ay composant core yu bari yu méngoo, li ci gëna bari mooy wàll duggal, wàll transmission wàññi, ak wàll genn:
|
Wàllu duggal bi dafa am arbre biy dugal ak mekaniismu engrenage planetaire bi. |
Motër bi dafay joxe doole ji ci engrenage jant bi jaaraleko ci arbre biy dugal, biy boole engrenage planetaire yu bari. Engrenage planetaire yi dañuy wër engrenage jant bi ci saasi, ba noppi ñuy wëreelu seen bopp, ñu def ci wàññikug etape bu njëkk bi. Jéego boobu mën na njëkka wàññi gaawaay bi ba noppi yokk couple bi, loolu mooy joxe doole ju dëgër ngir transmisioŋ cycloidal bi ci topp. |
|
Wàllu transmisioŋ biy yeexal mooy core bi ci reducteur RV bi, mu am arbre excentrique, pënu cycloidal, ak pënu pin. |
Rotaasioŋ u engrenage planetaire yi dañu koy jox engrenage cycloid yi jaaraleko ci arbre excentrique yi, te arbre excentrique bu nekk dafay dawal ñaari engrenage cycloïde yu am difference fase bu 180 degre ngir def mouvement excentrique. Profil bëñ bu pënu cycloid bi dafay nuru courbe cycloïde bu amul fenn, muy forme bëñ yu bari yu am meshing ak pënu puso (mu am bëñi puso yu bari yuñ séddale bu tolloo) ñu takk ko ci boîtier bi. Bu ñuy yëngu, limu bën yiy boole pënu sikloid bi ak pënu puso bi mën na yegg lu ëpp 2/3 ci limu bën yépp. Bii bëñ yu bari di séddoo sargal mooy caabi dëgëraay bu rëy bi. |
|
Wàll wiy génne dafay am doole juy génne ci bride biy génne ak arbre à vilebrekin bi |
Mouvement excentrique bu engrenage cycloidal bi dafay soppi def mouvement rotational bu bride biy génn ci roulement yi ci arbre à vilene bi, mu mujjee joxe doole ji def ñaari - etape deceleration ci njeexitalu sarge bi. Ci biir transmisioŋ bi yépp, doole ji dafay jaar ci diggante engrenage yi, loolu mooy tax ratio bi wàññeeku bu baax (dafay faral di nekk 10-100:1) ba noppi di kompense dooley centrifuge biy joge ci mouvement excentrique jaaraleko ci structure symétrique, loolu mooy tax liggéey bi di dox bu baax. |
Li gëna baax ci wàññikaayu RV mingi ci seen jëmmal ak seen defar, ak màndarga yi gëna am solo ci xarala yi ñuy wane ci mbir yii:
|
rigidite bu rëy mooy njariñam bi gëna am solo. |
Defarum bëñ yu bari yi dañuy séddale sargal bi ci surfaasu bëñ yu bari, boole ci ay jumtukaayi alloy yu am doole (lu melni carburing ak asiye buy fay) ak liggéey bu jaar yoon, loolu mooy tax reducteur RV bi mëna dékku sargal radial ak axial yu rëy ak robo axial, di tëye stabilite structurel bu bari ak mo taxaw. |
|
Njuumte ci dellu bu néew mooy garanti bi gëna am solo ngir am positionnement bu jaar yoon. |
Jumtukaayu dellu mingi aju ci hysteresis bu arbre biy génne ci diiru mouvement inverse. Reducteur RV dafay saytu njuumte bi ci niveau bu woyof lool jaaraleko ci coppite profil engrenage bu jaar yoon, gëna seere roulement bi, ak montage bu amul benn clearance, loolu dafay tax robot bi mëna yegg ci ± 0.01mm. |
|
Densité couple bu rëy bi ak structure bu dëgër bi dañuy boole lépp. |
Ci suufu benn volume, couple biy génn ci reducteur RV bi mooy 1.5-2 yoon couple bi ci reducteur planetaire bi. Màndarga bii di "yaram wu ndaw, doole ju rëy" daf koy may mu mëna dëppoo ak bëgg-bëggu senaario yu néew bayaal yu melni juntuwaayu robot, ci noonu muy wàññi diisaayu ekipmaa bi yépp. |
|
Rax ci dolli, |
RV reducers amnañu njariñ ci dundu gu yàgg (ak diir bu tollu ci diggante ay njuumte yu ëpp 10000 waxtu), liggéey bu neex (ak vibration ak bruit bu néew lool), ak resistance bu dëgër ci impact, moo tax ñu jafe wecci ci wàllu ekipmaa yu kawe. |

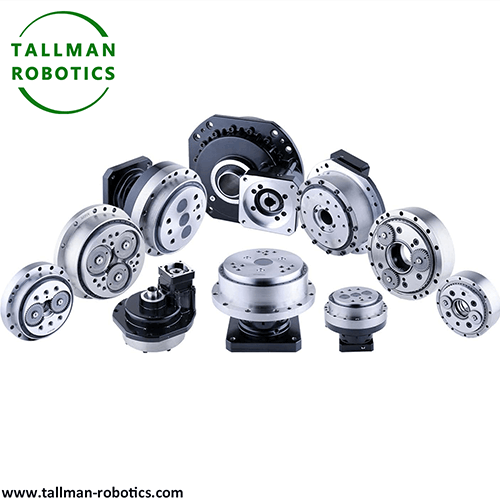

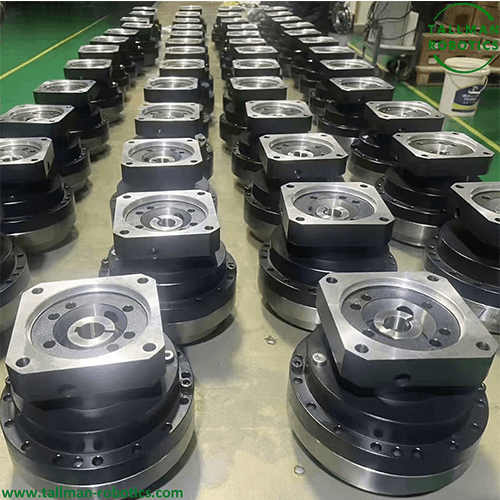

Ci xët wii, danuy wane RV Reducers yu bawoo ci TallMan Robotics, mooy gëna mag ci defar RV Gearboxes, di nga gis fiche de données, nataali liggéey, wideo yu mel nii:
Dina la dalal itam nga seetaan yeneen projet wala nga dugg ci sunu galëri wideo ci Youtube
|

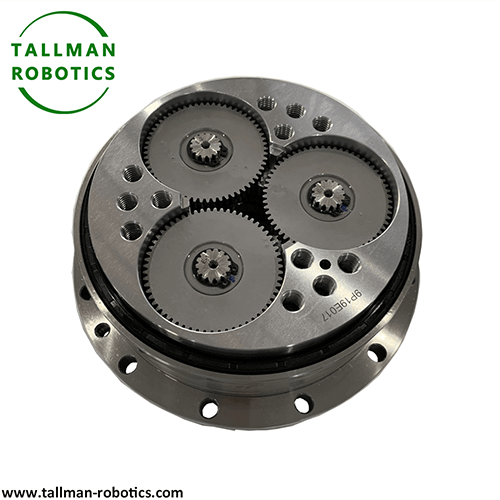

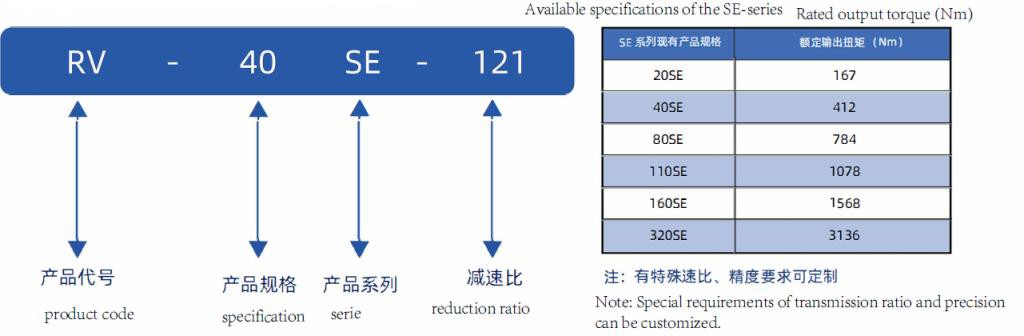

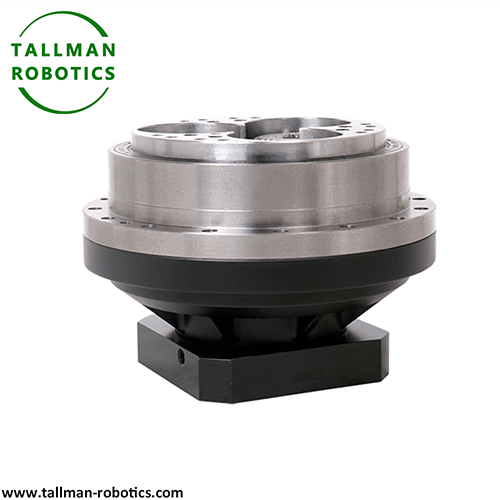

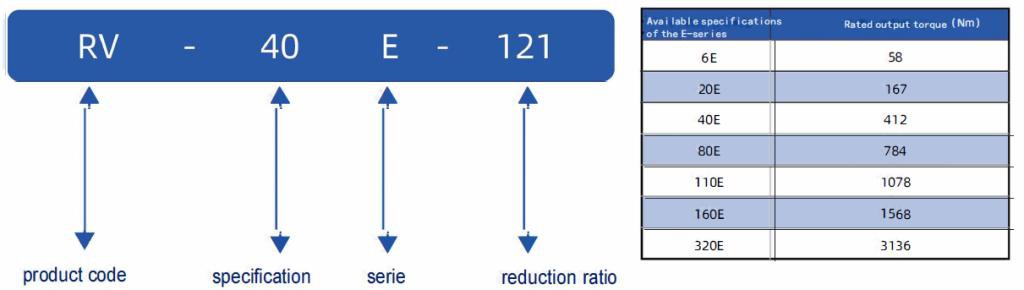

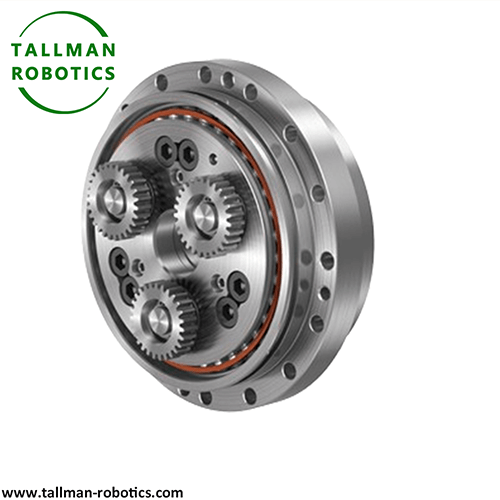

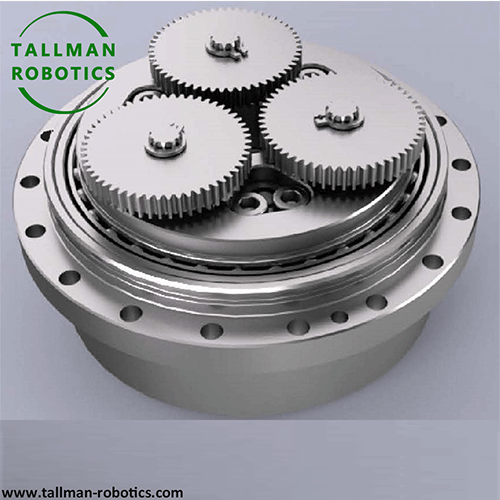

RV{0}}E Série: Roulement bu mag biñ tabax ci xeetu boîte de vitesse cycloïdale |
|
|
|
|
||
|
|
||||||
|

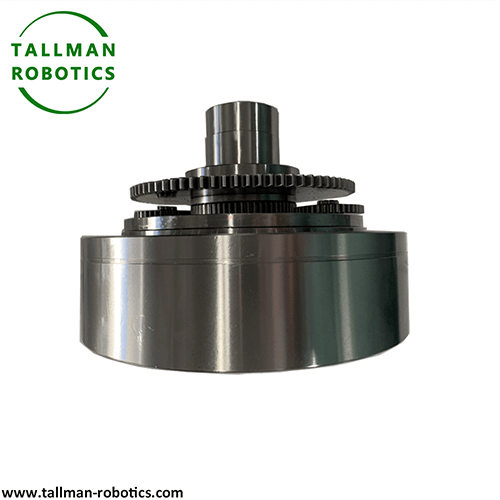

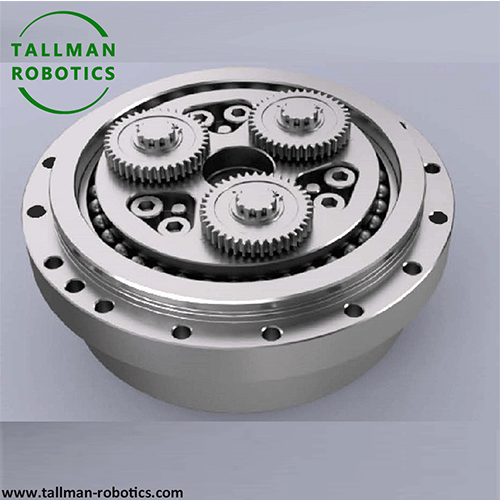

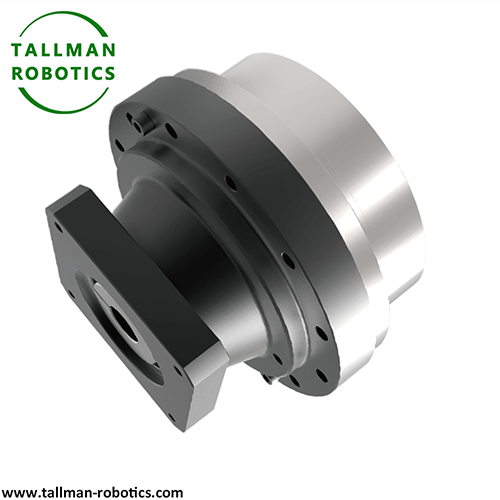

RV{0}}SE Série: Boîte de vitesses cycloïdales de bride d'entrée |
|
|
|
|
||
|
|
||||||
|

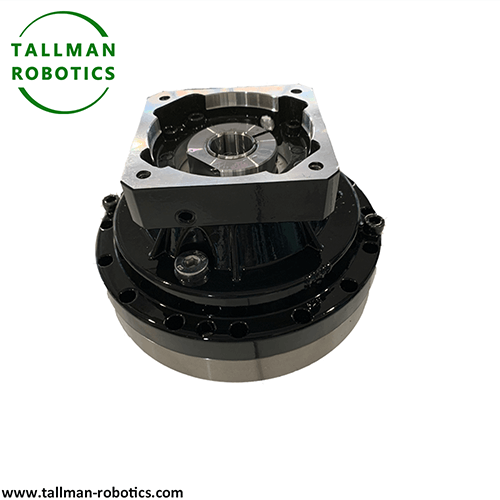

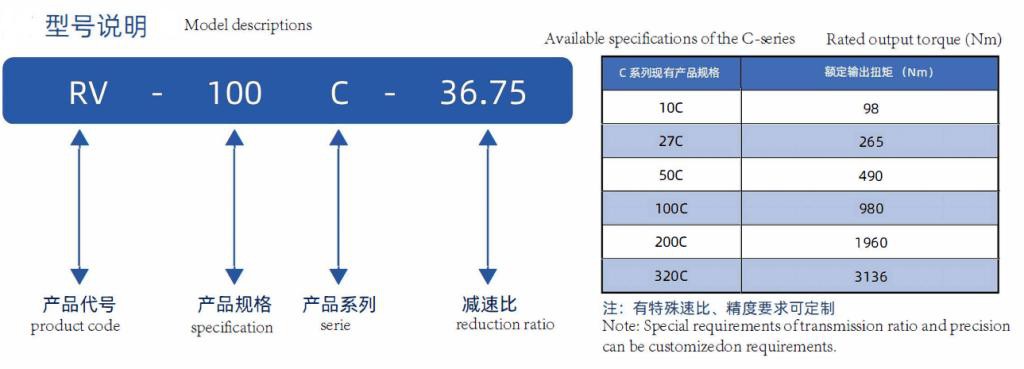

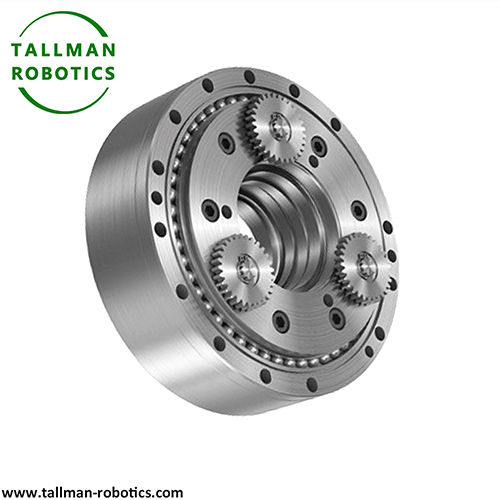

RV{0}}C Série: Boîte de vitesses cycloïdales de type hollow |
|
|
|
|
||
|
|
||||||
|

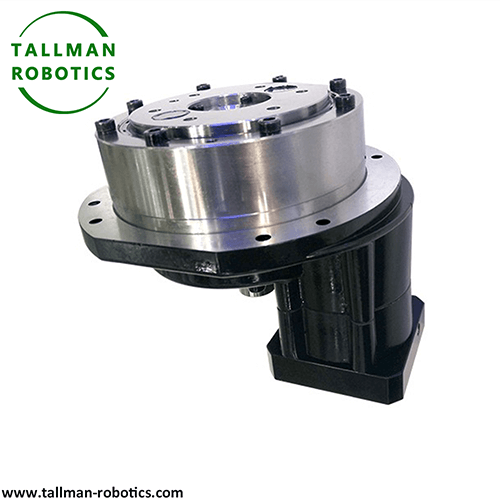

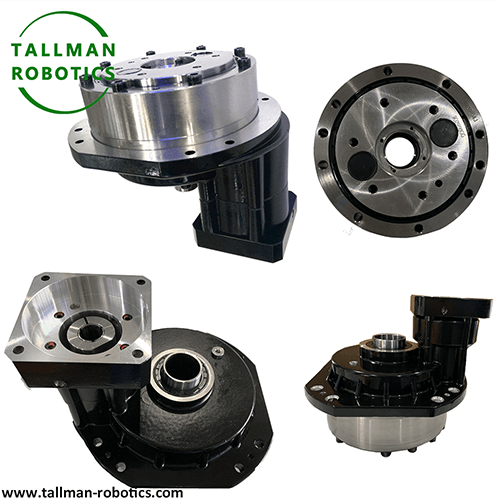

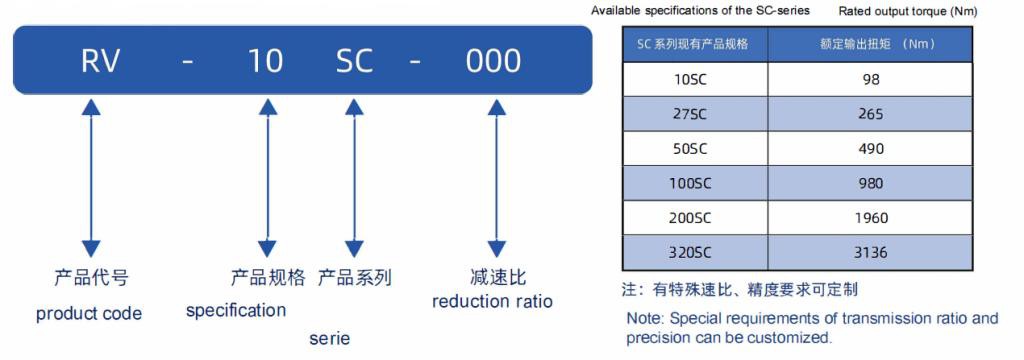

RV{0}}Série SC: Boîte de vitesses cycloïdales de bride de entrée |
|
|
|
|
||
|
|
||||||
|

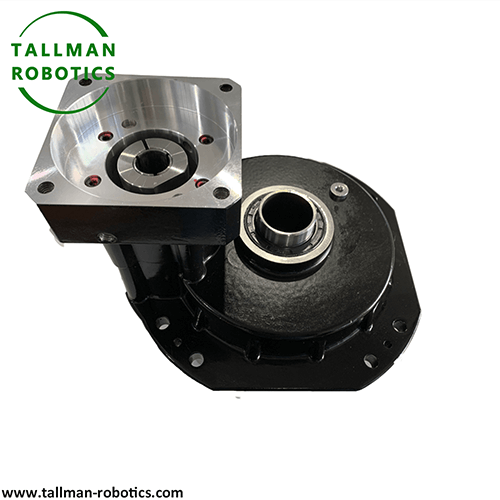

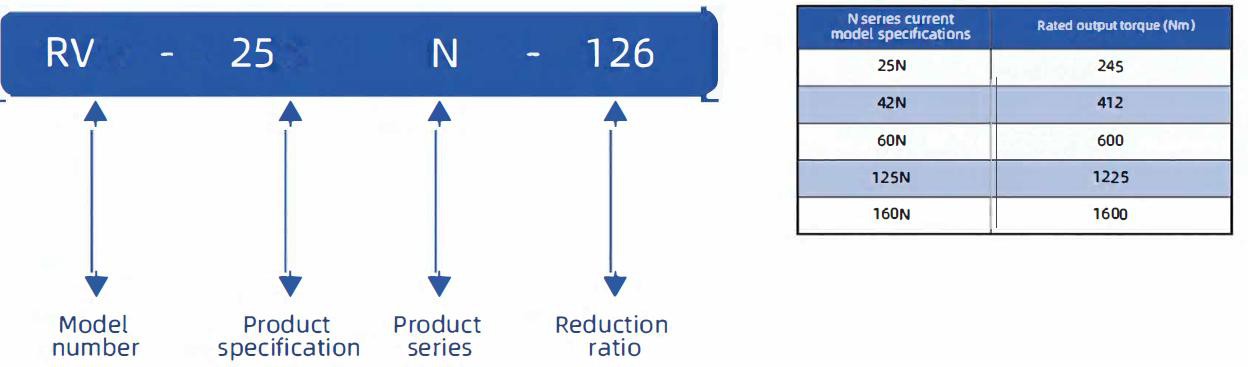

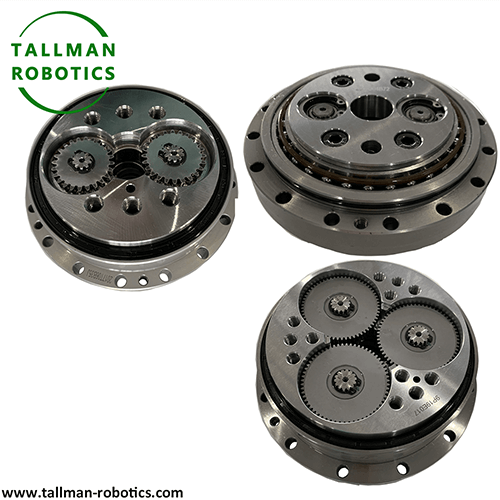

RV-N Série: |
|
|
|
|
||
|
|
||||||
Ci wàllu transmisioŋ bu jaar yoon, wàññikatu RV yi dañu am diggante bu am ñatti pàcc ak wàññikaayu harmonic yi ak wàññikaayu planetar yi, waaye amnañu njariñ yu am solo ci wàllu liggéey:
|
Reducteurs harmoniques |
Reducteurs RV yi ñoo gëna dëgër, gëna am doole baña dóor, te amul benn jafe-jafe coono ci pëno yu yomb yi ci reducteurs harmonique yi. Seen dundu liggéey mën na yegg 3-5 yoon li reducteurs harmoniques. Doonte reducteurs harmoniques yi dañu am tuuti njariñ ci miniaturisation, reducteurs RV ñooy gëna taamu ci pièce yu robot yi soxla couple bu rëy ak wóor gu rëy. |
|
Reducteurs planetaires cosaan |
njuumte dellu RV reducers wàññeeku na lu ëpp 80%, ak bëñ yu bari meshing jëmmal yokk rigidité lu ëpp 30%. Doonte reducteurs planetaire yi ñoo gëna néew njëg, dañuy gaawa yàqu, te dañuy wàññi njubte ci gaawaay bu rëy ak sargal yu diis, te loolu mënul ànd ak li ñuy laaj ci ekipmaa yu mujj yi ci diir bu yàgg. |
|
Perspektiwu senaario jëfandikoo |
RV reducers yi ñoo méngoo ak jafe-jafe yiy laaj dëgëraay bu rëy, jaar yoon, ak dundu gu yàgg. Reducteurs harmoniques ñu ngi leen di gëna jëfandikoo ci senaario yu am charge bu woyof, waaye reducteurs planetaires ñu ngi leen di gëna jëfandikoo ci wàllu transmission bu digg ba ci wàll wi gëna suufe. Ñoom ñatt dañuy mottali seen biir waaye mënu ñu wecci lépp. |
Lan mooy barabi jëfandikoo gi ak valeur industriel bu RV reducer?
|
Jëfandikoo RV reducers dafa yaatu joge ci robot usine dem ba ci barabi ekipmaa yu mag |
ci wàllu robot usine yi, mooy lëf li gëna am solo ci robot yu am 6 axe, robot yuy liggéeyandoo, robot SCARA, ak ñoom seen, yor liggéeyu wëréelu lëkkaloo ak liggéeyu dawal sargal; Ci wàllu jumtukaayi masin yu jaar yoon, dañu koy jëfandikoo ci komponent yu am solo yu melni plateforme CNC ak jumtukaayi servo ngir mëna wax ni liggéey bi jaar na yoon; Ci wàllu aerospace, dañu koy jëfandikoo ngir dawal antenu satelit, mekanismu direksioŋ radar, ak ñoom seen, te mën na dékku jafe-jafe yu tar ci environmaa bi; Ci wàllu jumtukaayi pajum, dañu koy jëfandikoo ngir ay robot chirurgikaal ak ay detektër yu leer ngir mëna def ay paj yu yam ci milimetre; Ci wàllu energie bu bees, dañu koy jëfandikoo ci sistem yu am pitch bu mën soppiku ak aparey yiy toppe fotowoltaik ngir gëna mëna soppi energie. |
|
Ci wàllu usine |
xarala yu bees yi ci RV reducers am solo strategiku. Bu yàgg, liggéeyukaay yu waa Japon yu melni Hamonaco ak Sumitomo ñoo daan jëfandikoo xarala yooyu, ba noppi Chine dafa yàgg a wéeru ci import yi. Ci at yii ñu weesu, ak jéego yu am solo yi am ci gëstu ak defar yi liggéeyukaay yi am ci biir dëkk bi, liggéey bi ñuy defaree ci biir dëkk bi RV reducers ñu ngi gëna yokk. Loolu du yam ci dindi monopole bi waa bitim réew di def, waaye dafay tax itam liggéeyum robotik bu Chine mëna moom boppam, wàññi njëgu defarum ekipmaa yu mujj yi. |
Ni "power joint" ci ekipmaa yu mujj yi, niveau technique bu RV reducer dafay indi directement njeexital ci dooley defar bu am xel ci benn réew. Dafay boole bu baax njubte gu rëy, dëgër gu rëy, ak wóor gu rëy jaaraleko ci jëmmal mekanik bu rafet, di joxe ab pexe transmisioŋ bu am solo ngir yokkuteg otomatisasioŋ usine. Ak yokkuteg Usine 4.0 ak màgg gu gaaw gi ci liggéeyum robotik, laaj bi ci wàññikaayu RV dina wéy di gëna yokk. Ay coppite yu bees ak ay jéego yu am solo ci xaralaam dina tax itam ekipmaa yu gëna xarañ ngir mëna def ay jéego yu am solo, nekk benn ci xarala yu am solo yiy jàppale ci jamonoy defar yu am xel.
